ICF Electrical Wiring in St. John's & NL

• In a traditional home, electricians pull wire through hollow wooden stud cavities. Insulated Concrete Forms (ICF), however, consist of a solid reinforced concrete core sandwiched between thick layers of EPS foam. Because there are no hollow spaces, we cannot just drill holes and pull wire. Instead, we must use specialized techniques to safely route your electrical system directly into the interior foam layer without damaging the concrete core or compromising the home's thermal envelope.

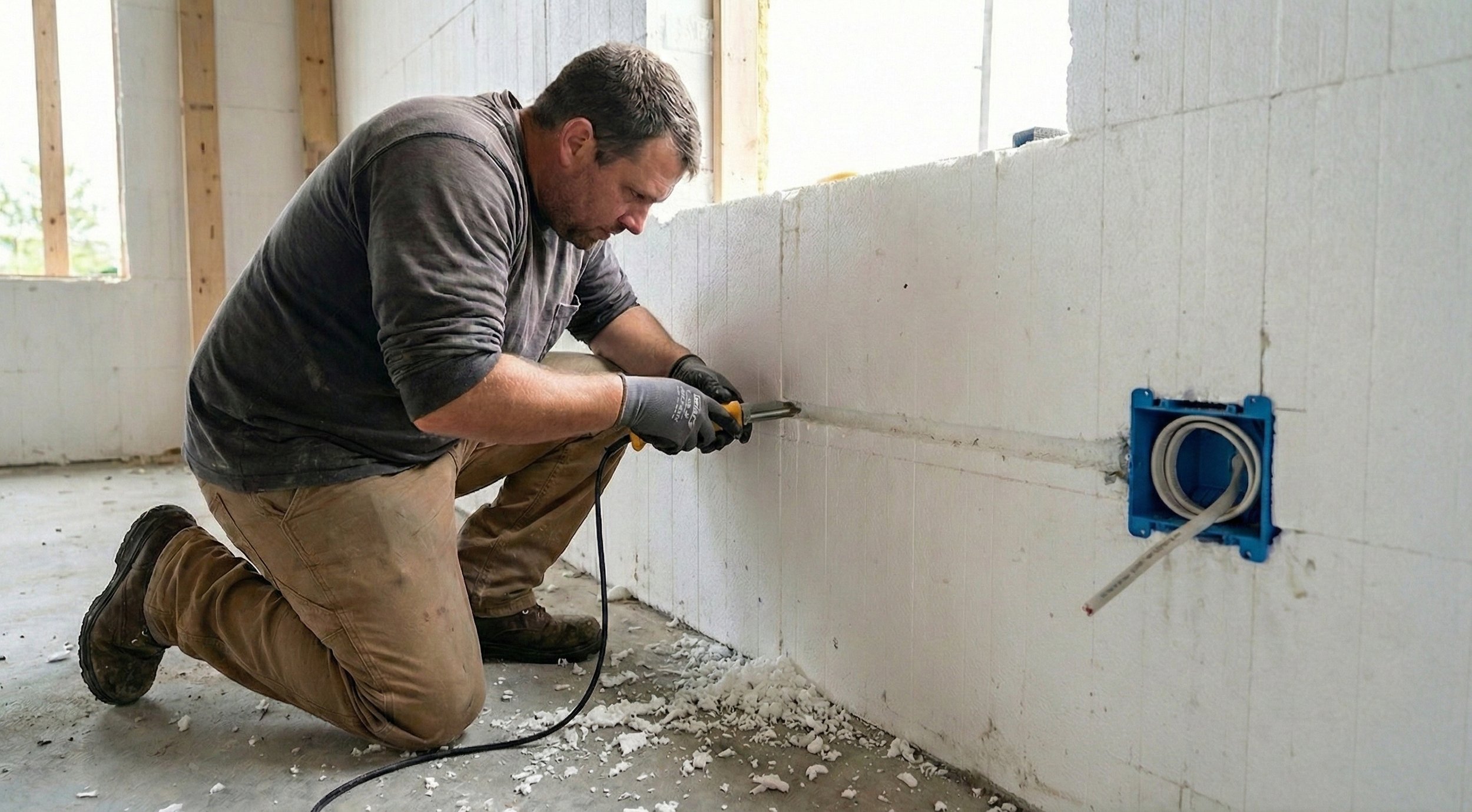

• Precision is key. At Vinland Electrical, we use specialized tools like professional electric hot knives and routers to melt or carve clean, exact channels (chases) directly into the foam. We only cut as deep as strictly necessary to safely house the cables and meet code requirements. Because ICF foam is thick, plenty of solid insulation remains intact behind the wire. We also ensure any gaps around electrical boxes are properly sealed to maintain your home’s airtight, highly energy-efficient performance.

• Standard electrical boxes are meant to be nailed to wooden studs and will easily pull out of foam. We carefully select and install electrical boxes designed specifically for ICF construction. Depending on the block design, we anchor these boxes securely to the high-density plastic webs (ties) hidden inside the blocks, or we anchor them directly into the solid concrete core. Your outlets and switches will be rock-solid, perfectly flush, and maintain their airtight seals.

The earlier, the better! Our work on an ICF build happens in two main stages:

• Before the concrete pour: We collaborate directly with you and your builder to install PVC sleeves and conduits for major exterior penetrations (such as your main electrical service panel, exterior lighting, EV chargers, or heat pump feeds) so they pass safely through the concrete core.

• After the pour: Once the concrete is fully cured and the house is weather-tight, we return to perform the precision foam channeling, mount the boxes, and run the interior wiring before the drywall goes up.

• While it is possible, altering the electrical layout on an exterior ICF wall after the drywall is finished is much more labour-intensive, messy, and costly than in a standard wood-framed home. You cannot simply "fish" a wire down the wall; it requires cutting the drywall, carving new foam channels, running the wire, and patching everything up. This is why we place a massive emphasis on collaborative pre-planning. We work closely with you during the design phase to future-proof your layout, ensuring all your smart home setups, lighting, and everyday outlets are exactly where you'll need them.

• Absolutely. Running standard NMD90 wire in ICF foam is fully compliant with the CEC, provided it is installed at the correct depth (to protect it from future drywall screws) and properly secured. As fully licensed Newfoundland electricians, we are well-versed in all provincial and national codes pertaining to ICF construction. We handle the permitting and ensure your project is 100% compliant and passes inspection the first time

• ICF construction is a premium investment in energy efficiency, built to withstand our harsh North Atlantic climate. It shouldn't be a training ground for an electrician who has never worked with foam and concrete. Inexperienced contractors can easily over-cut foam, install loose boxes, or make code-violating mistakes that are incredibly expensive to fix once the concrete is poured. At Vinland Electrical, we are master electricians—not commission-based salespeople. We bring the specialized tools, hands-on ICF experience, and local, boots-on-the-ground expertise needed to do the job right the first time and protect your investment.
